Casio CZ-101 -1985     Weight= 6 Lbs. Number mfg.= 70,000 MRP=$499

User Manual: Manual Manor
Reset Proceedures: N/A
Operating System code:
MIDI or other control protocol: CZ101-1000 MIDI
Software related Links: Editor
Patches or knob settings:
Circuit Overview: below

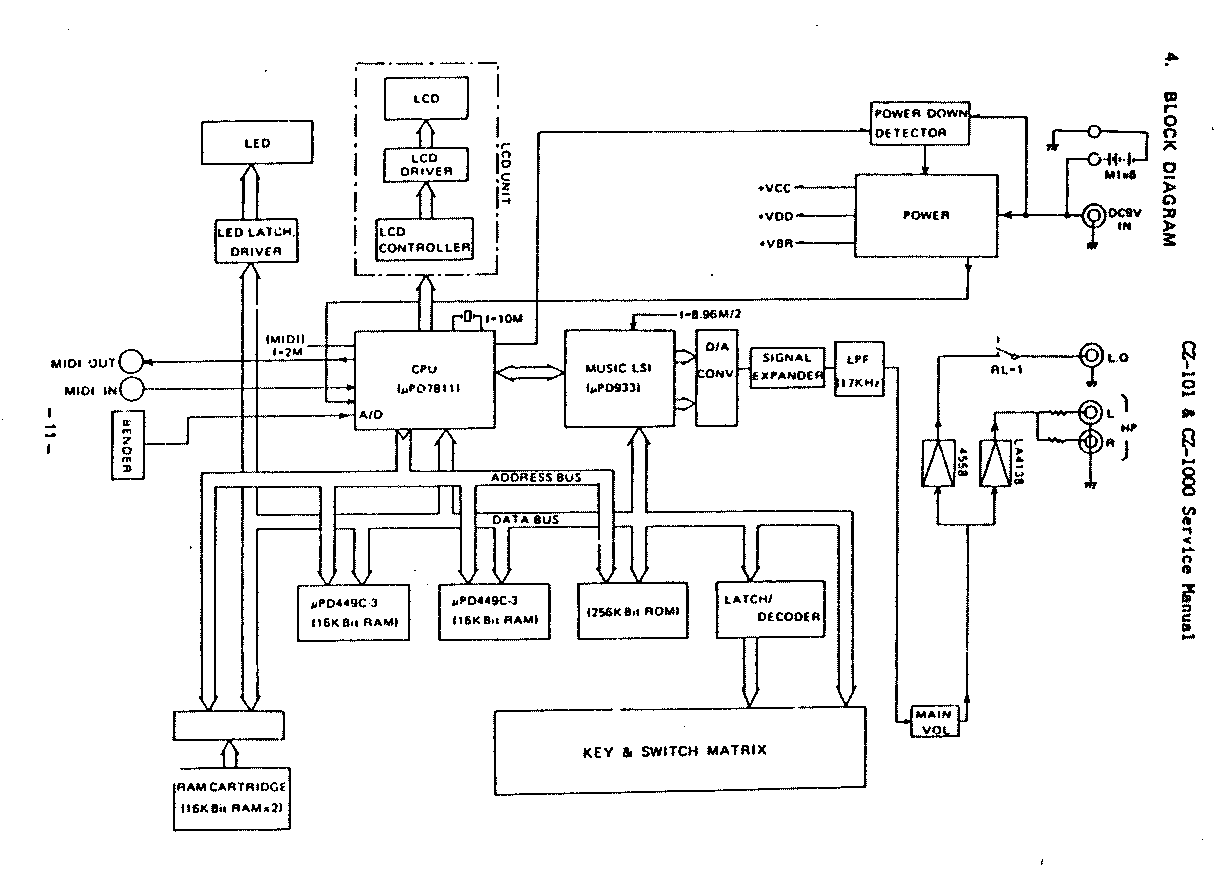

Scematics/Service Manual: Block Diagram or Manual Manor or see CZ1000 page for similar schematics?
Common Service Issues/Tips: below
Parts Sources: Keys knobs semiconductors misc
Uncommon chips/modules used: Many
General Info Links: Vintage Synth Explorer

Circuit Overview:
     A digital synthesizer which utilizes special processing chips designed to support Casio's Phase distortoin synthesis architecture.

Service Tips:
     Don't look for the backup battery. It's not there. This thing takes 6 D cells which backup memory. Temporarily memory is backed up when it's all powerless, by a large capacitor. It's on the smaller power supply board.
